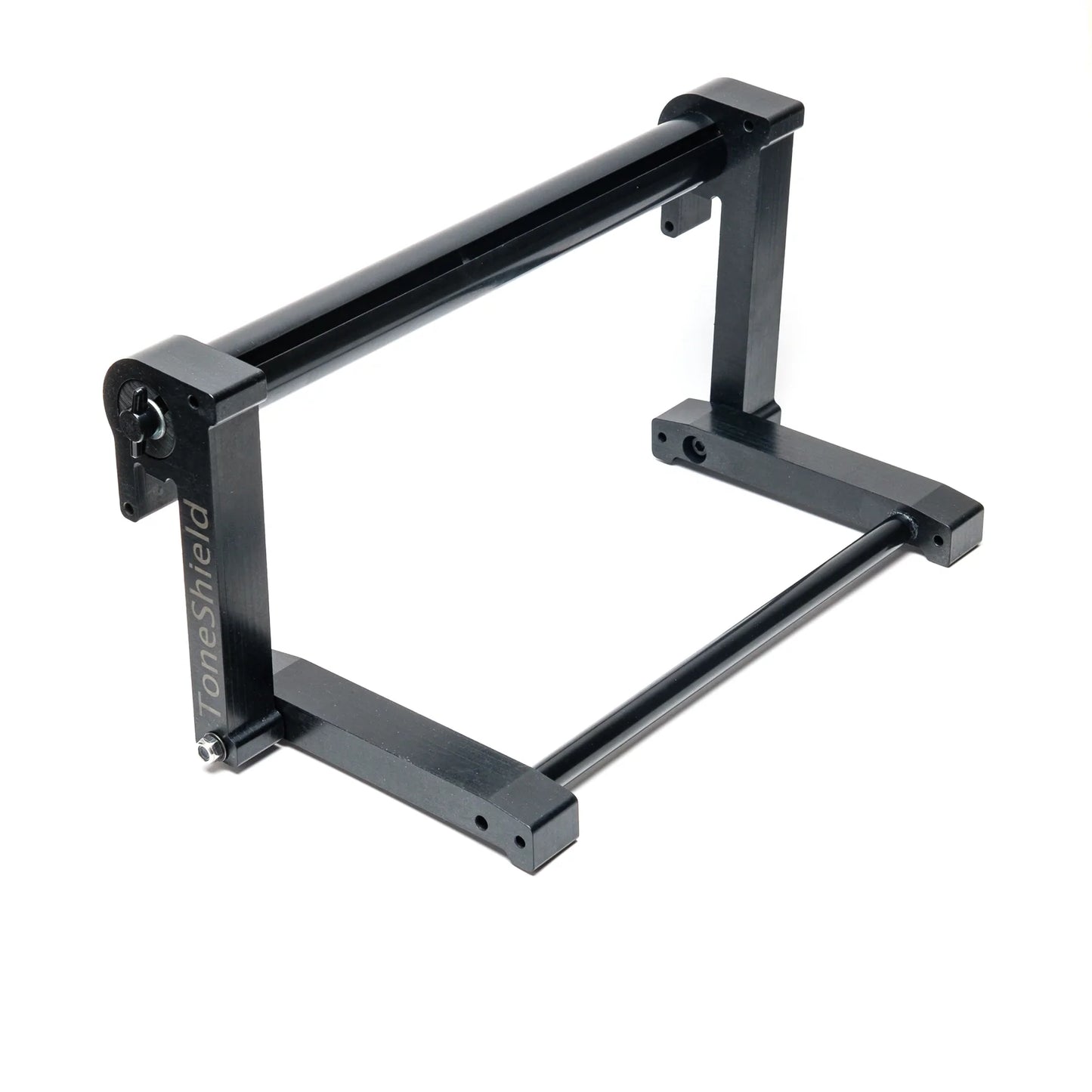

ToneShield v2R Base

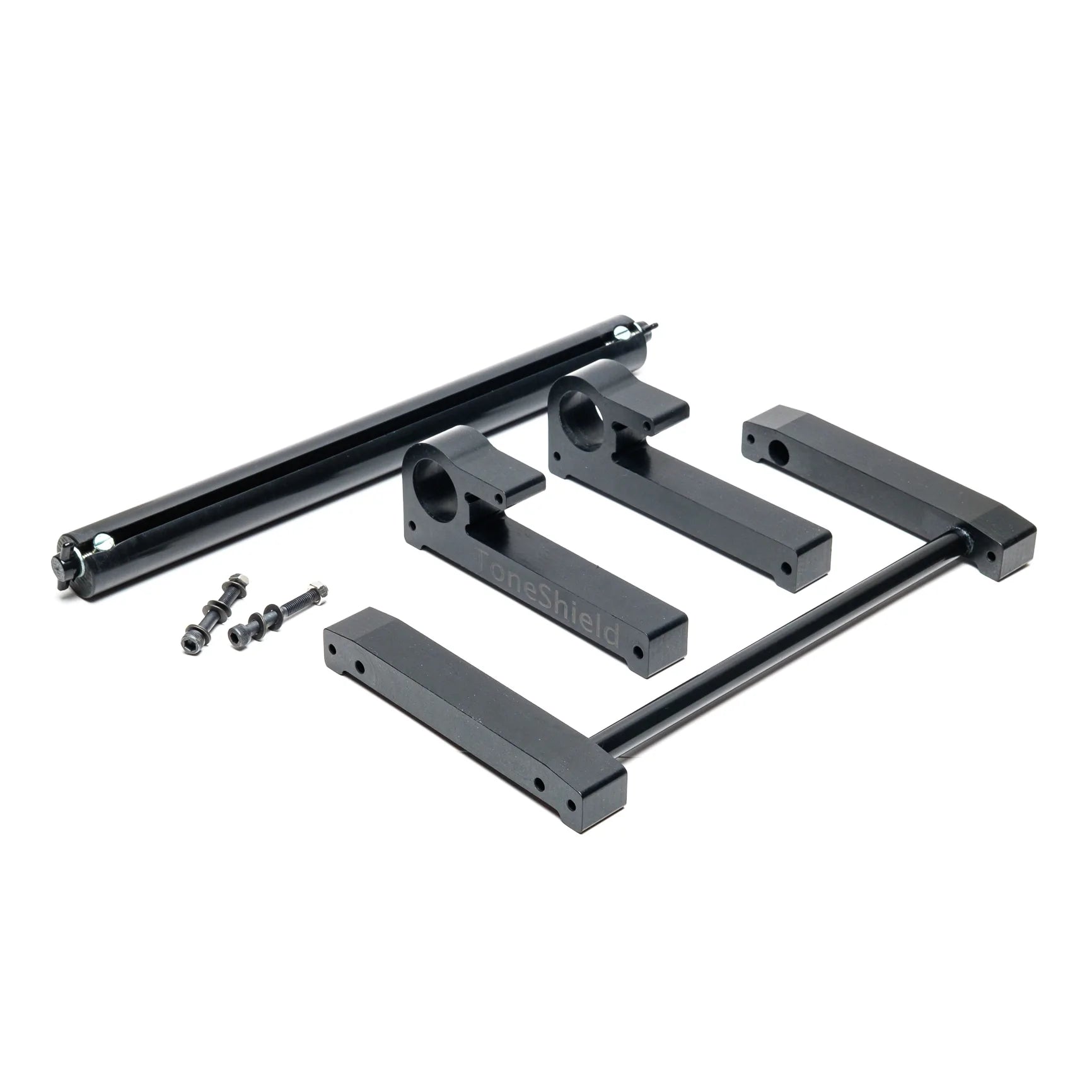

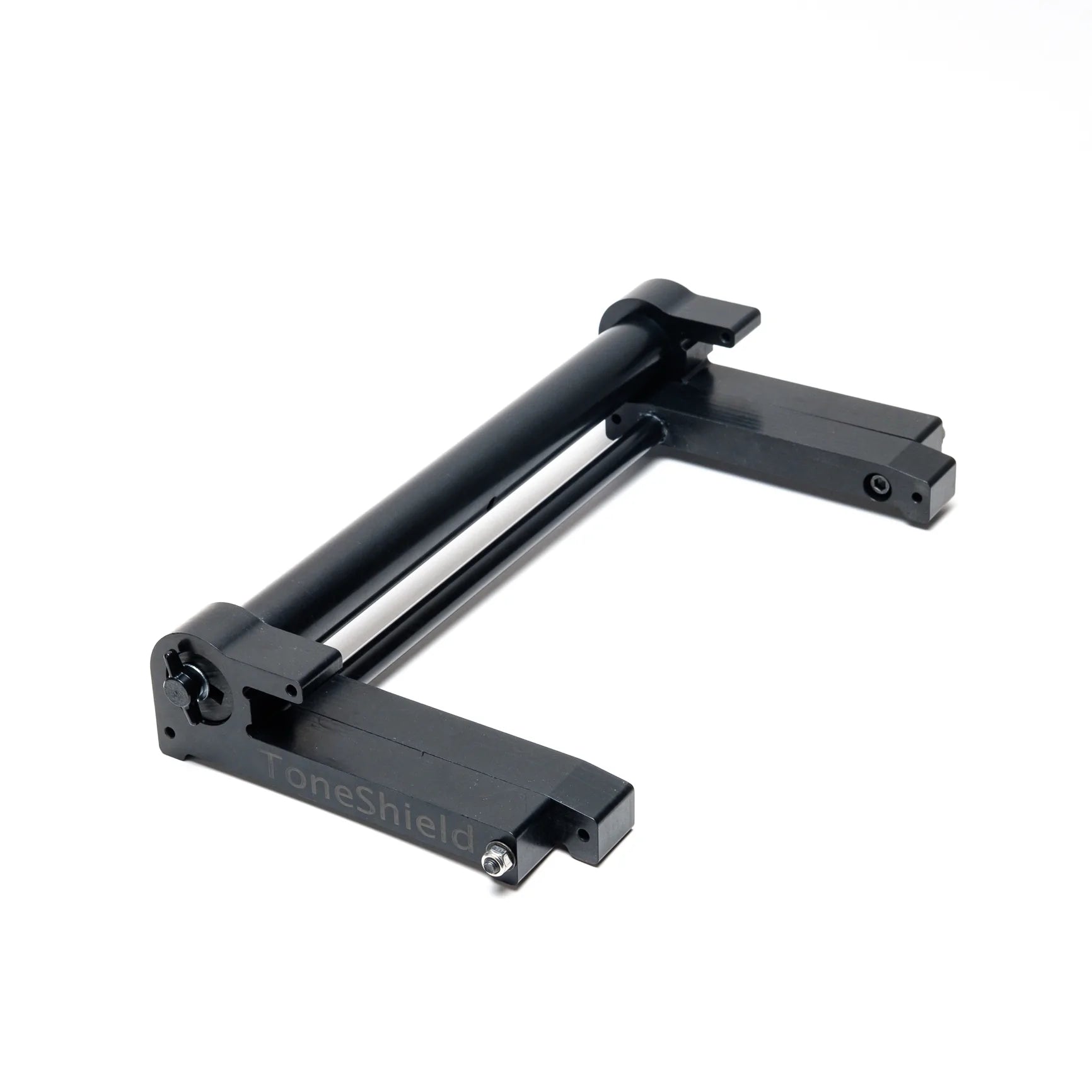

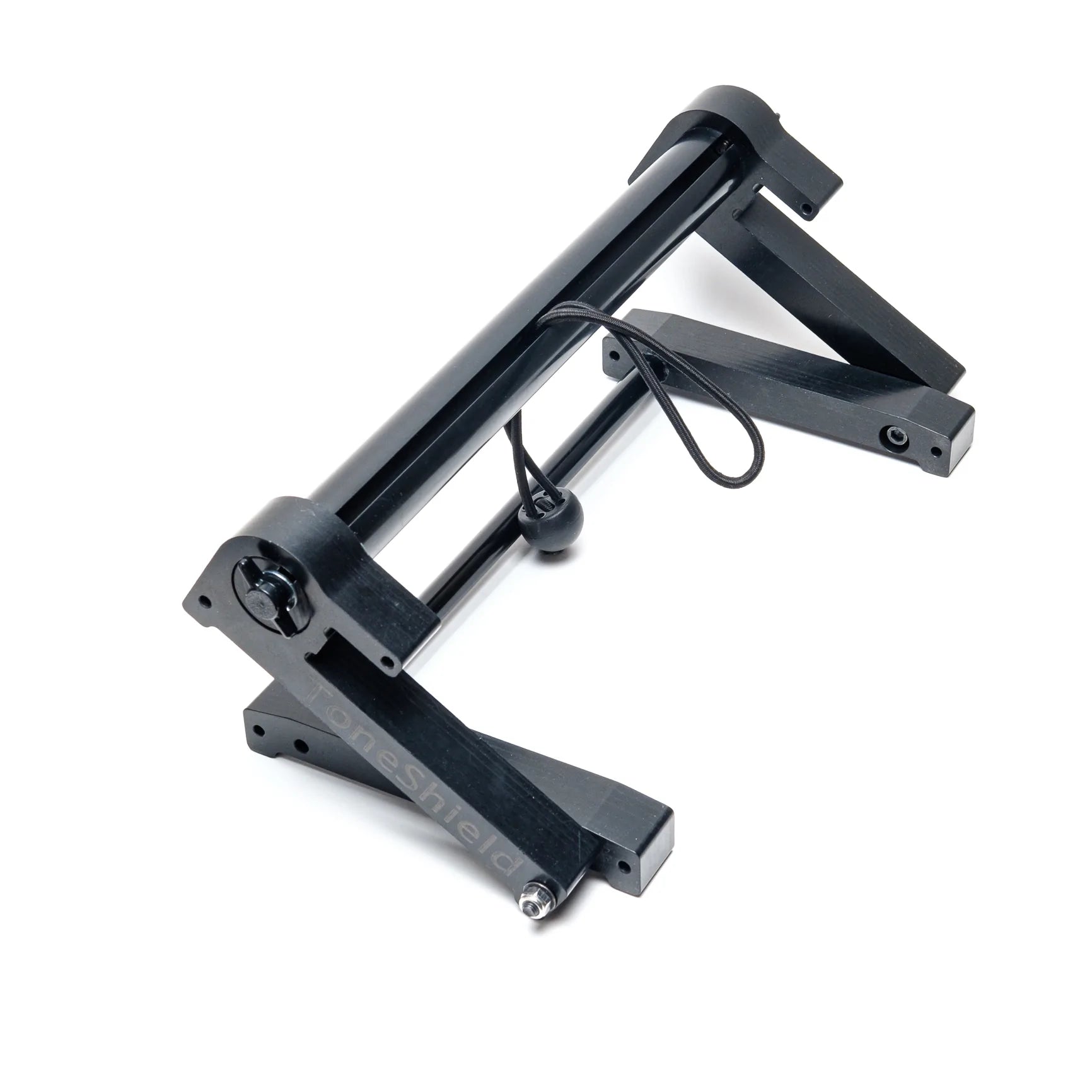

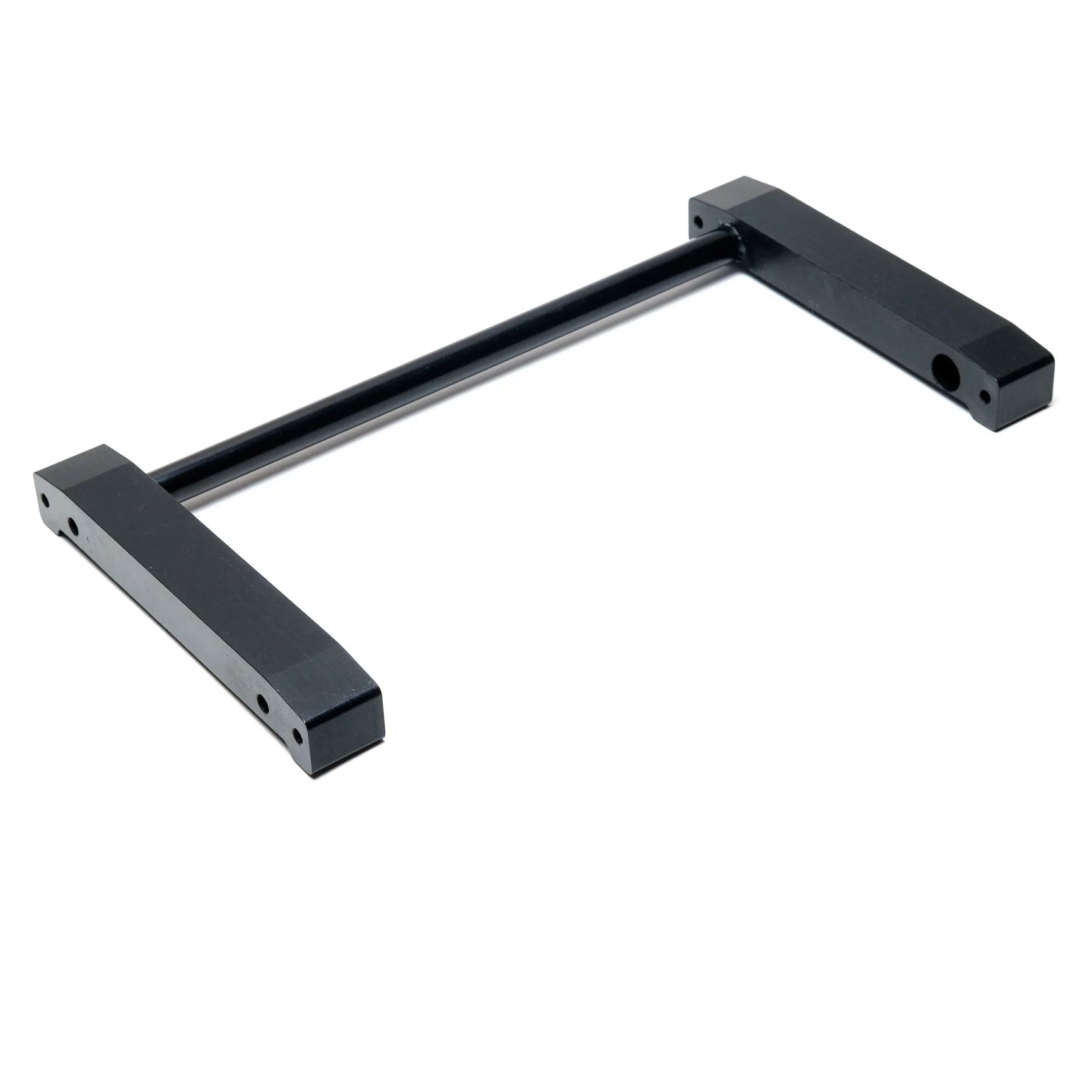

ToneShield v2R Adjustable Base with unlimited angles and Riser. The Riser will raise the shield up 4" above the lowest position. This adjustable base is lightweight, will adjust to any angle you desire and can be disassembled for compact travel. Manufactured from ABS in Chatham, VA.

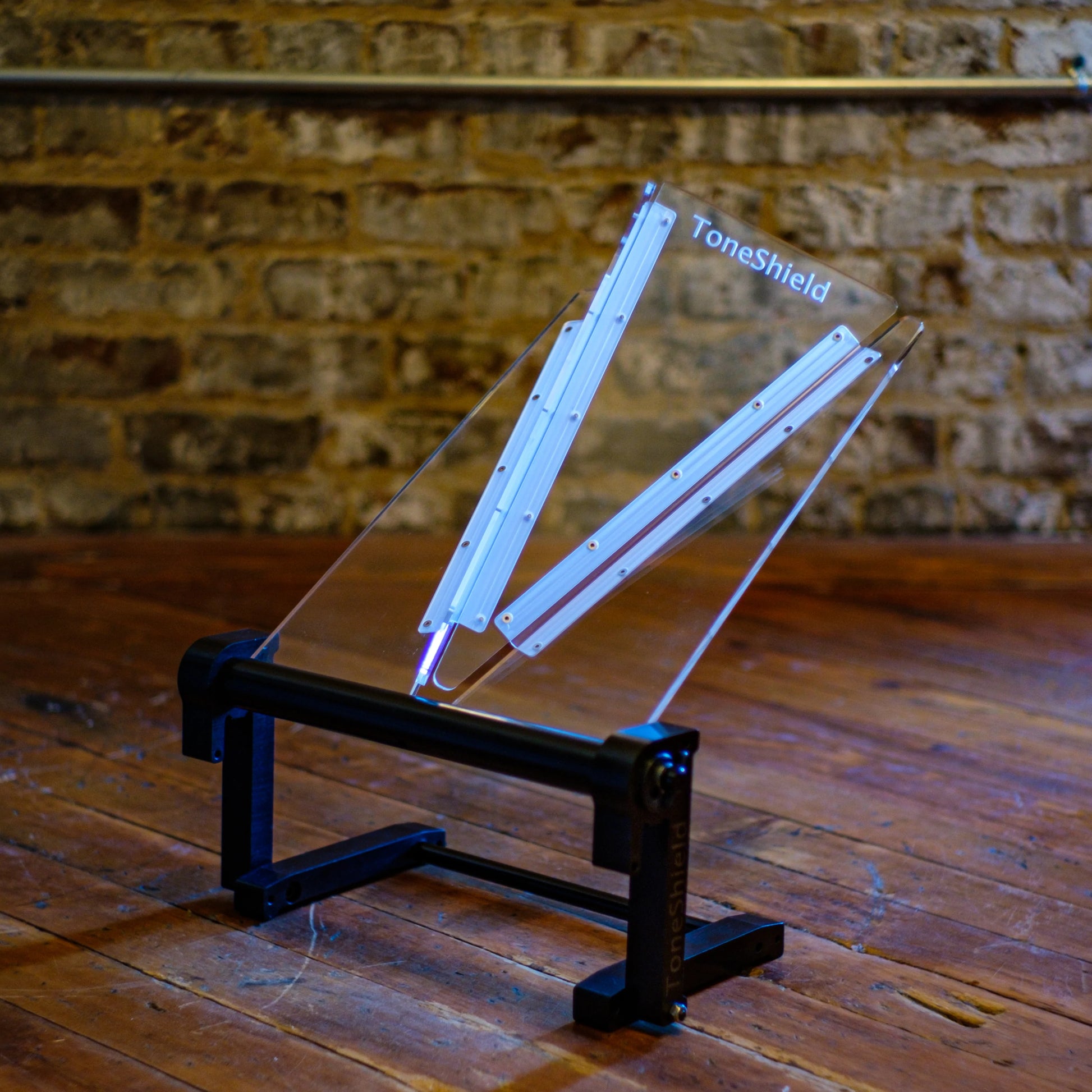

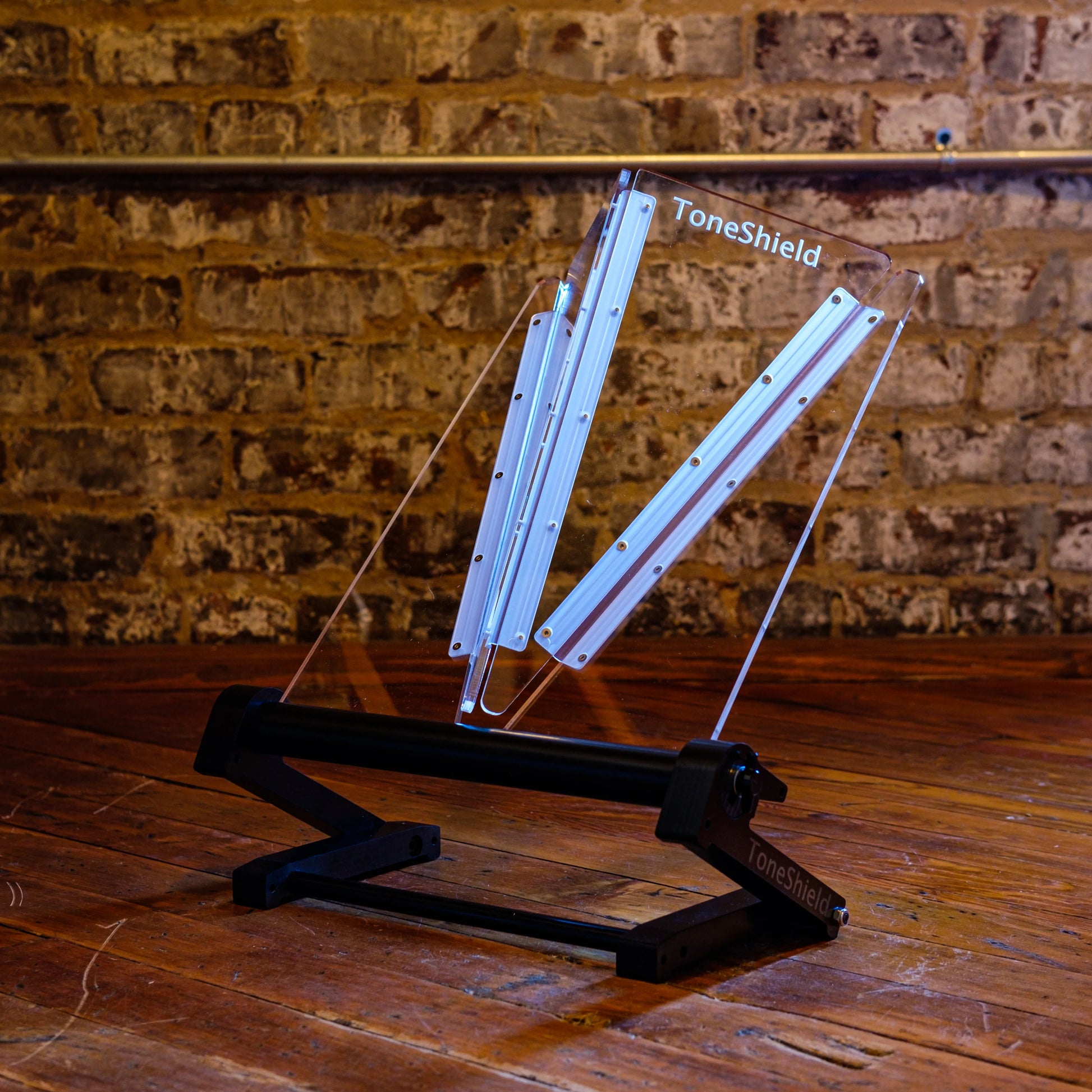

The Folding Guitar Amplifier Speaker Beaming Solution that solves problems when performing on stage. After you spend 30 seconds setting up Tone Shield, your amp will sound warmer, more velvety and the sound engineer will stop asking you to turn down. The shield is made from tough 6mm cast Polycarbonate, which we machine to accept acrylic hinges. We also machine the hinges to fit 3mm brass screws. You might be able to wear out the hinges if you bend them more than a million times! The shied panels are incredibly durable, but if it happens to fall victim to a Pete Townsend performance moment, you can easily replace any panel in minutes.
ToneShield is designed to be so compact it will fit in the back of most open back amps and cabinets as shown in some of the photos

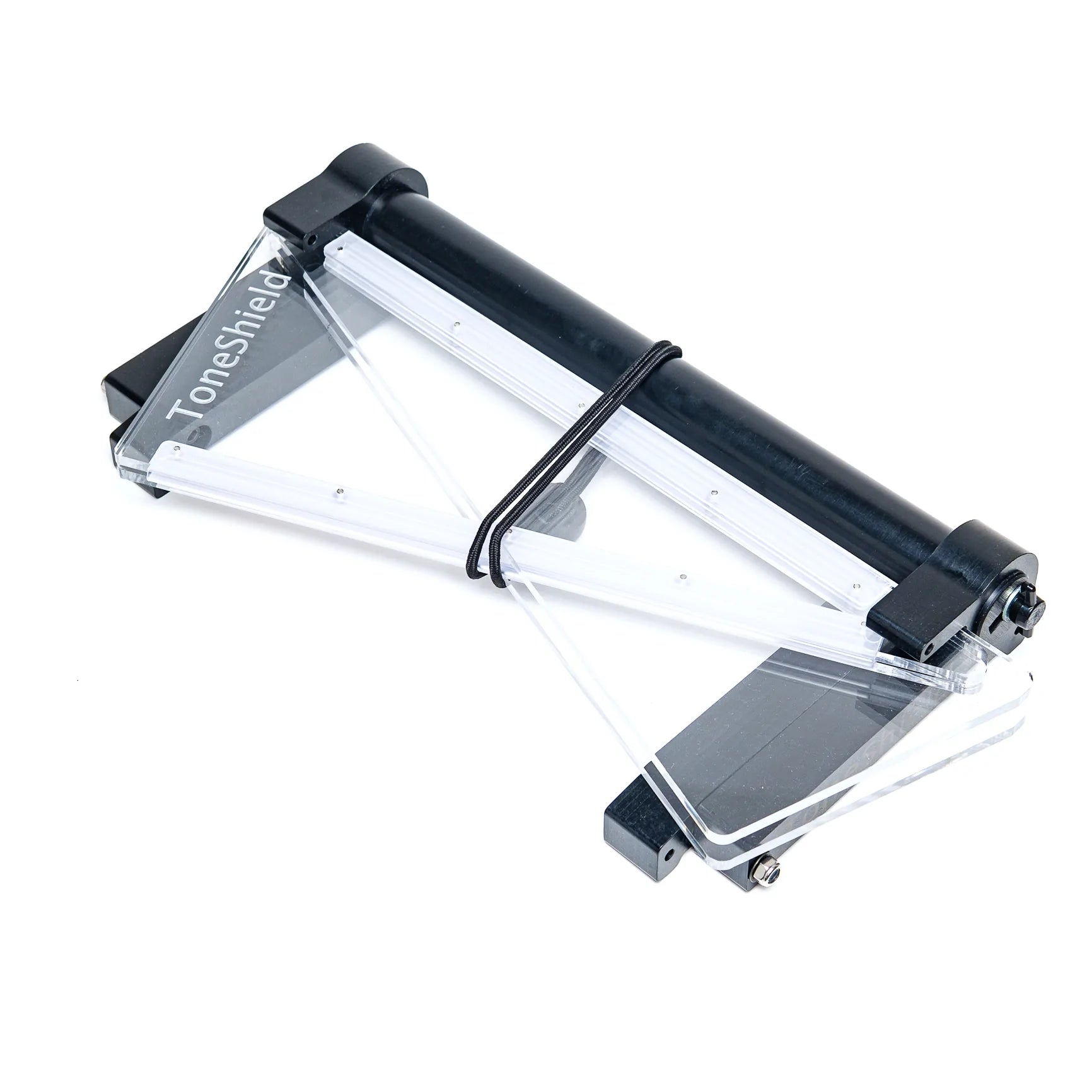

The original ToneShield base is made from wood and we paint it flat black, add four rubber feet and an elastic cord for shield stowing. ToneShield v2 and v2R bases are machined from light weight and durable black ABS plastic. It takes only seconds to setup and fold up. Please keep in mind that wood is a natural product and that while we do our best to produce a consistent product, there will be variations inherent to wood.
Original = 1.5 kg (3.3 lbs) / v2 = 1.3 kg (2.9 lbs) / v2R = 1.54 kg (3.4 lbs)
Original Base = 740 gr (1.6 lbs) / v2 = 650 gr (1.4 lbs) / v2R = 760 gr (1.7 lbs)
Shield = 780 gr (1.7 lbs)
Dimensions for all versions:
Folded Height = 63mm (2.5")
Width = 210mm (8.3")
Length = 406mm (16")
Assembled: Height = Original & v2 = 381 mm (15") / v2R allow up to 482mm (19")
Width = 283mm ( 11.1")
Length = 305mm (12")
